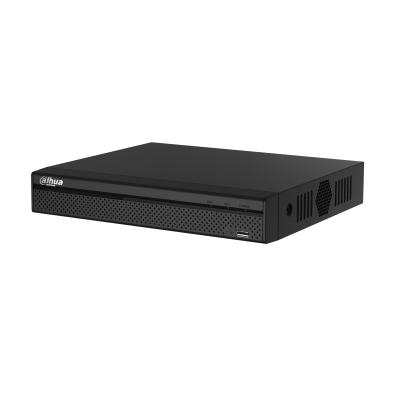

NEW Dahua NVR 2 ล้านพิกเซล รายละเอียดกล้องวงจรปิด ประกอบไปด้วย | ชุด 4 กล้อง | ชุด 8 กล้อง | ชุด 16 กล้อง | | 1. เครื่องบันทึกกล้องวงจรปิด | NVR4104S-4K2S | NVR4108S-4K2S | NVR4116S-4K2S | | 2.กล้อง รุ่น IPC-HFW1230S รุ่น IPC-HDW1230S | 4 ตัว | 8 ตัว | 16 ตัว | | 3.อะแดปเตอร์ | 4 ตัว | 8 ตัว | 16 ตัว | ราคา ชุดโปรโมชั่น | 17,900 | 31,500 | 60,799 | P2P ดูผ่านมือถือทุกระบบ ฟรีตลอดอายุการใช้งาน | หมายเหตุ ชุดโปรโมชั้น กล้องวงจรปิด ไม่รวมการติดตั้ง จอภาพ ภาษีมูลค่าเพิ่ม 7 % อุปกรณ์ชุดอะเดปเตอร์จ่ายไฟ เป็นอุปกรณ์ที่บริษัทจัดแถมให้จึงไม่อยู่ในเงือนใขการรัปประกันสินค้า |

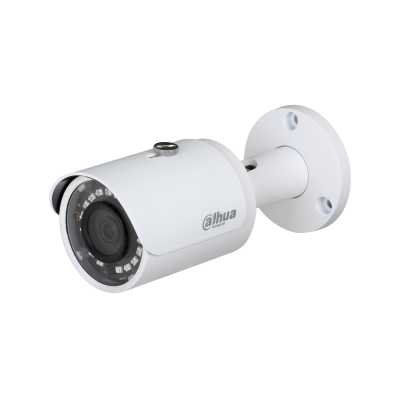

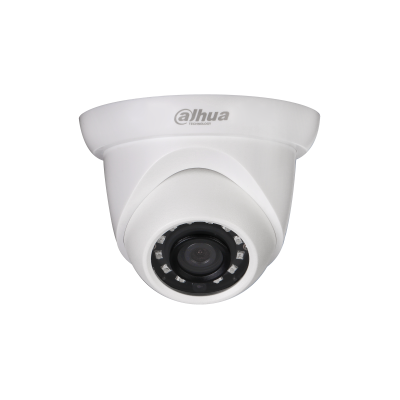

| IPC-HFW1230S > 1/2.7 2Megapixel progressive CMOS > H.265& H.264 dual-stream encoding > 25/30fps@1080P(1920×1080) > DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC > Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS > 2.8 mm fixed lens (3.6mm optional) > Max IR LEDs Length 30m > IP67, PoE | | IPC-HDW1230S > 1/2.7 2Megapixel progressive CMOS > H.265 & H.264 dual-stream encoding > 25/30fps@1080P(1920x1080) > DWDR, Day/Night(ICR), 3DNR, HLC, AGC, BLC > Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS > 2.8 mm fixed lens (3.6mm optional) > Max IR LEDs Length 30m > IP67, PoE |
Camera | Image Sensor | 1/2.7 2Megapixel progresive CMOS | Effective Pixels | 1920(H) x1080(V) | RAM/ROM | 256MB/128MB | Scanning System | Progressive | Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s | Minimum Illumination | 0.08Lux/F2.0( Color,1/3s,30IRE) 0.3Lux/F2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on) | S/N Ratio | More than 50dB | IR Distance | Distance up to 30m(98ft) | IR On/Off Control | Auto/ Manual | IR LEDs | 18 | Lens | Lens Type | Fixed | Mount Type | Board-in | Focal Length | 2.8 mm (3.6 mm optional) | Max. Aperture | F2.0/F2.0 | Angle of View | H:104°/92°,V:55°/50° | Focus Control | Fixed | Close Focus Distance | 0.6m(0.9m) | DORI Distance | Lens | Detect | Observe | Recognize | Identify | 2.8 mm | 40(131ft) | 16(52ft) | 8(26ft) | 4(13ft) | 3.6 mm | 53(174ft) | 21(69ft) | 11(36ft) | 5(16ft) | PTZ | Pan/Tilt Range | Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° | Intelligence | Event Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly | IVS | Tripwire, Intrusion | Video | Compression | H.265/H.264H/MJPEG(Sub Stream) | Smart Codec | Support H.265+/H.264+ | Streaming Capability | 2 Streams | Resolution | 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240) | Frame Rate | Main Stream: 1080P(1 ~ 25/30fps) | Sub Stream: D1(1 ~ 25/30fps) | Bit Rate Control | CBR/VBR | Bit Rate | H.265: 12K ~ 6400Kbps H.264: 32K ~ 10240Kbps |
Day/Night | Auto(ICR) / Color / B/W | BLC Mode | BLC / HLC / DWDR | White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | Gain Control | Auto/Manual | Noise Reduction | 3D DNR | Motion Detection | Off / On (4 Zone, Rectangle) | Region of Interest | Off / On (4 Zone) | Electronic Image | Support | Smart IR | Support | Digital Zoom | 16x | Flip | 0°/90°/180°/270° | Mirror | Off / On | Privacy Masking | Off / On (4 Area, Rectangle) | Audio | Compression | N/A | Network | Ethernet | RJ-45 (10/100Base-T) | Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP; FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP; TLS | Interoperability | ONVIF Profile S&G, API | Streaming Method | Unicast / Multicast | Max. User Access | 10 Users / 20 Users | Edge Storage | NAS Local PC for instant recording | Web Viewer | IE, Chrome, Firefox, Safari | Management Software | Smart PSS, DSS, DMSS | Smart Phone | IOS, Android | Certifications | Certifications | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B | Interface | Video Interface | N/A | Audio Interface | N/A | RS485 | N/A | Alarm | N/A | Electrical | Power Supply | DC12V, PoE (802.3af)(Class 0) | Power Consumption | <5.5W |
Environmental | Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | Ingress Protection | IP67 | Vandal Resistance | N/A | Construction | Casing | Metal+Plastic | Dimensions | Φ70mm×164.7mm(2.76''x6.49'') | Net Weight | 0.38Kg(0.84lb) | Gross Weight | 0.44Kg(0.97lb) |
| |
| | |
